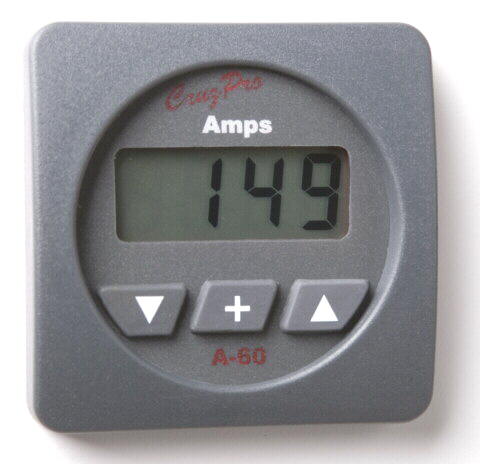

CruzPro A-60 Square

Programmerbar amperemeter med 5 niveauer baggrundslys der viser fra 0-900 amp. med en nøjagtighed der hedder +/- 0,1 amp. ved 90 amp. og +/- 1 amp. op til 900 amp. Virker både ved 12 volt og 24 volt og forbruger selv kun 0,018 amp. Inklusiv NMEA 0183 udgang.

Specifikationer:

• 9.5 - 33.0 VDC, transient protected.
• Current Drain: 0.018 amps nominal.
• Operating temperature: 32 to 122 deg F (0 to 50C).
• Display: 4 digit LCD, 5 levels of backlighting.
• Data: Digital Amps, programmable for 5.0 - 900 amp shunt.
• Ranges: 0 to from 5.0 to 900 amps.
• Resolution: 0.1 amps for shunt < 90 amps - 1 amp for shunt size > 90 amps.
• Accuracy: Better than +/- 3% +/- 1 digit.
• Adjustable Front Panel.
• Data Ouput: NMEA 0183 serial 4800 BAUD, $IIXDR,I.
• Size: 2.5" dia. X 4.1" deep (61 mm. x 104 mm.).
• Mounting: 2-1/8" (55 mm.) round hole.

The A-60 Digital Ammeter provides accurate low cost digital instrumentation for amps and is programmable to use a 5.0 to 900 amp shunt (not provided). Up to +/- 90.0 amps the A60 can display current in tenths of an amp. Above +/- 90 amps current is displayed in full amps.
The A60 can be powered by any voltage between 9.5 and 33 Volts. Five levels of backlighting can be selected using the front panel keys and backlights can be turned on/off remotely. All setup and calibration constants are saved to nonvolatile memory. The A60 outputs NMEA serial data at 4800 BAUD. This data can be used to repeat the information at a remote location or log performance on a computer.

Information

Vejledning & guide i PDF
